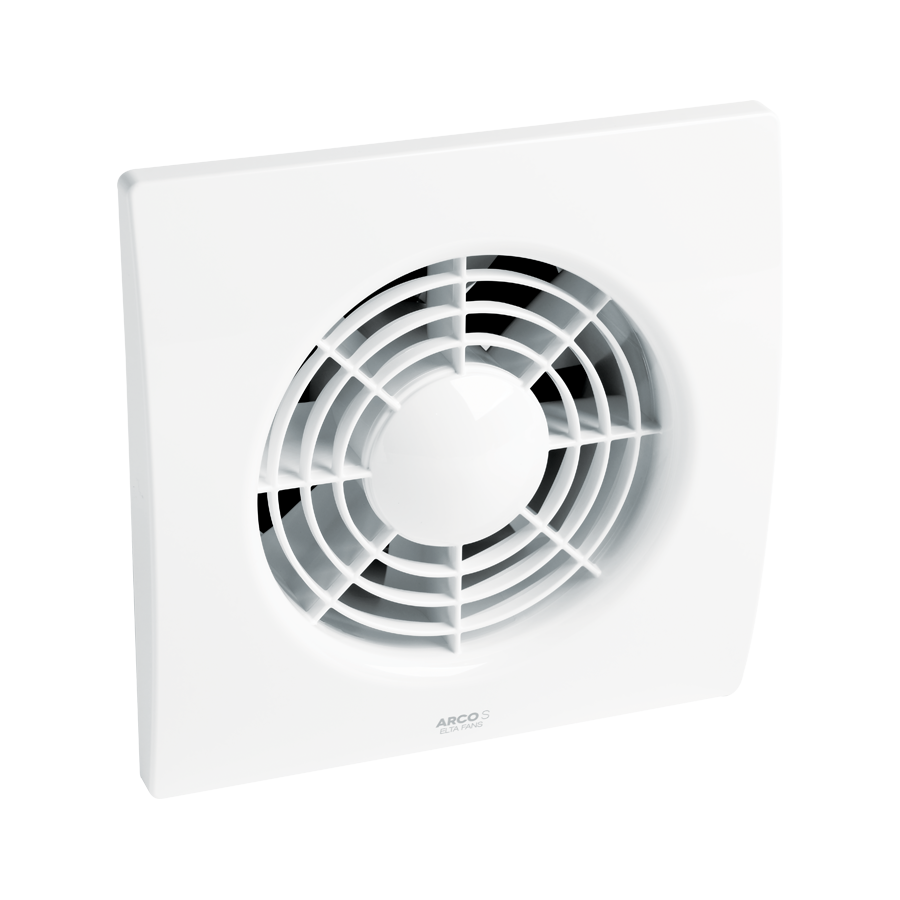

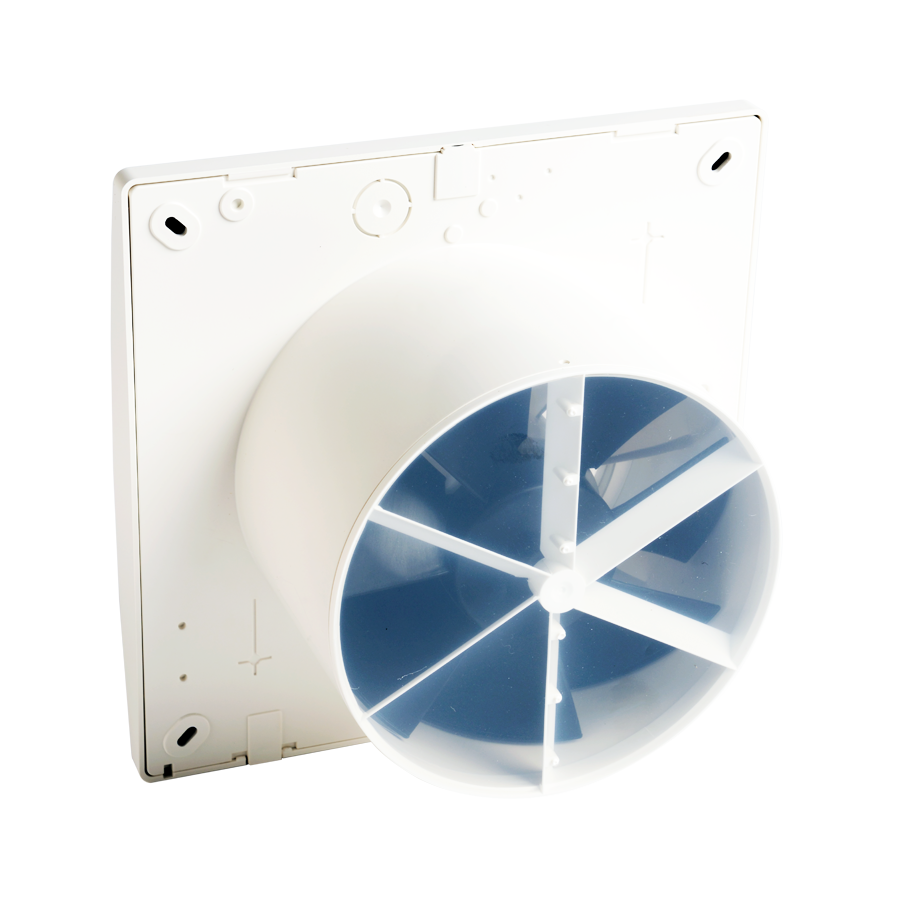

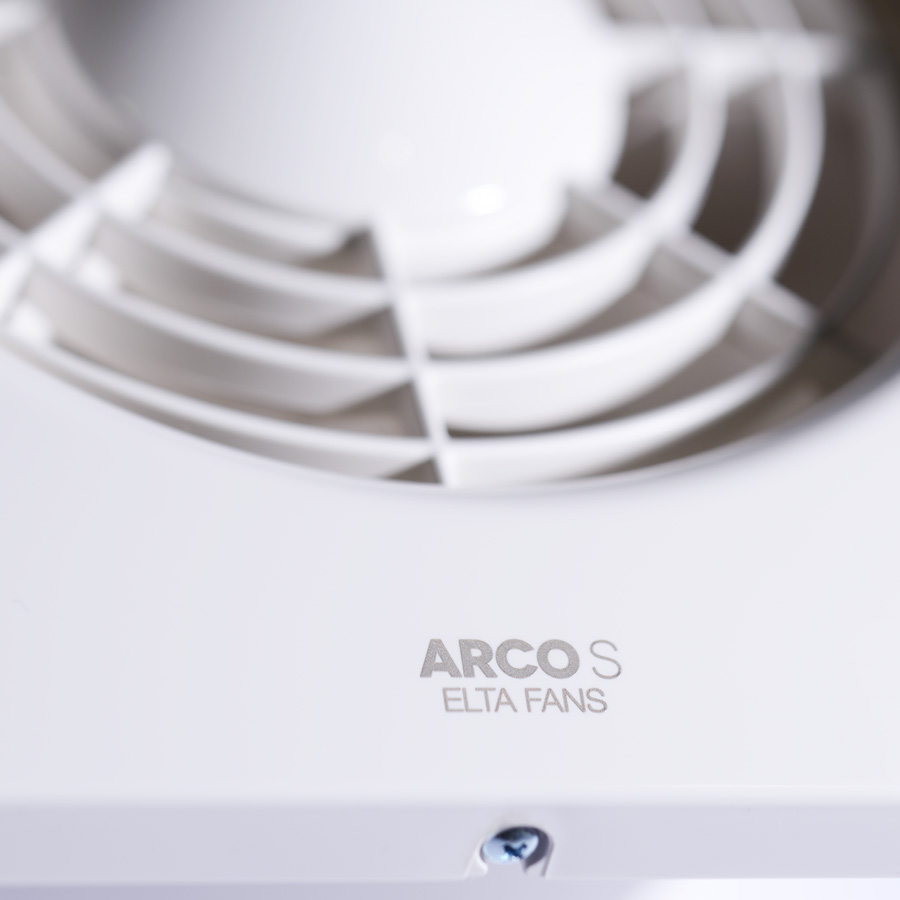

Arco S 100HTC
Intermittent Extract Fan
- IPX4 splash proof, suitable for installation in Zones 1 and 2
- Quiet operation, provides unobtrusive ventilation
- Unique BLADELET impeller design for optimised performance and acoustics
- Suitable for wall, ceiling or window mounting
- Complies with all UK building regulation requirements
- Available in AC
SKU: ARCO S 100HTC
Out of stock
Got a question about this product?
Compatible Accessories
Overview
AC Intermittant Extract Fan. Available in three sizes, 100mm, 125mm and 150mm. Options include humidity sensor, adjustable run on timer and pull cord.
Application
The Arco S range of fans are designed for intermittent extract of contaminants such as humid air and odour from bathrooms, kitchens and utility rooms. The fans are only triggered when required or when the room is in use. The Arco S is our standard extract fan offering a good quality product with simple, discreet styling.
Operation
Arco S 100, Arco S 125 & Arco S 150
An external switch such as a light switch is used to switch the fan on and off via a switched live.
Arco S 100C, Arco S 125C & Arco S 150C
The fans is turned on and off with an integral pull cord.
Arco S 100T, Arco S 125T & Arco S 150T
An external switch such as a light switch is used to switch the fan on and off. An integral over-run timer which will keep the fan running for a set amount of time after the external switch has been turned off.
Arco S 100HTC, Arco S 125HTC & Arco S 150HTC
The fan is built with an integral timer and humidistat. The fan can be switched on via an external switch or the integral humidistat, which will trigger the fan once the relative humidity level exceeds a selectable threshold.
