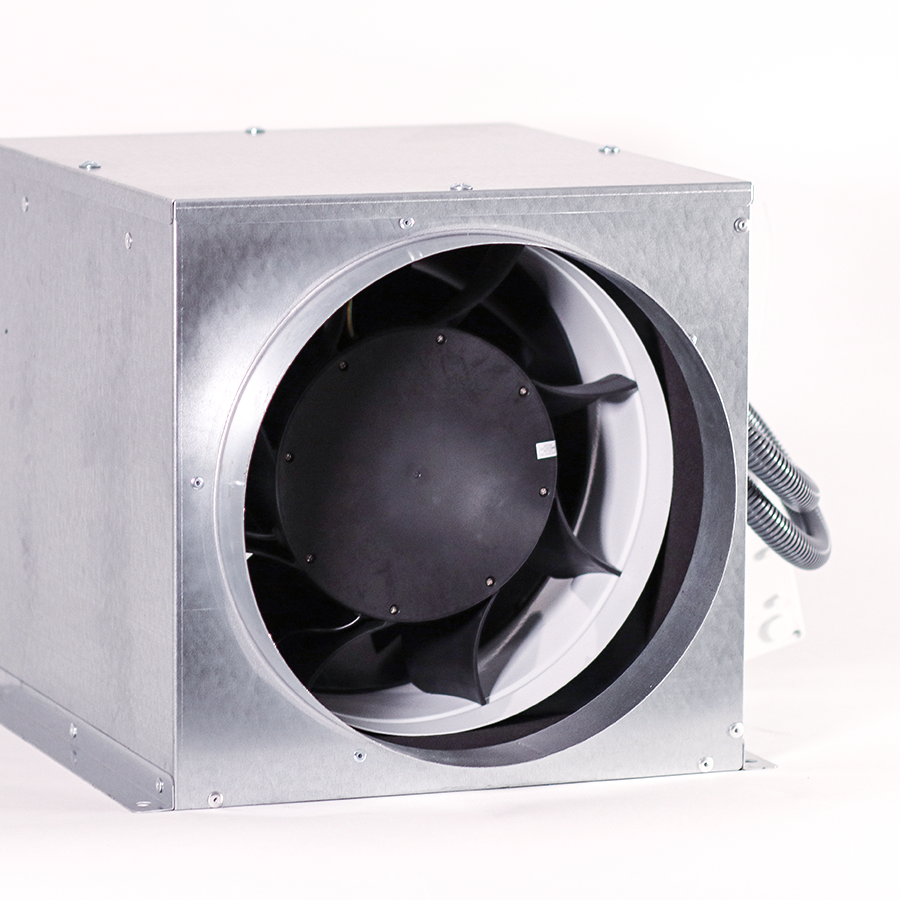

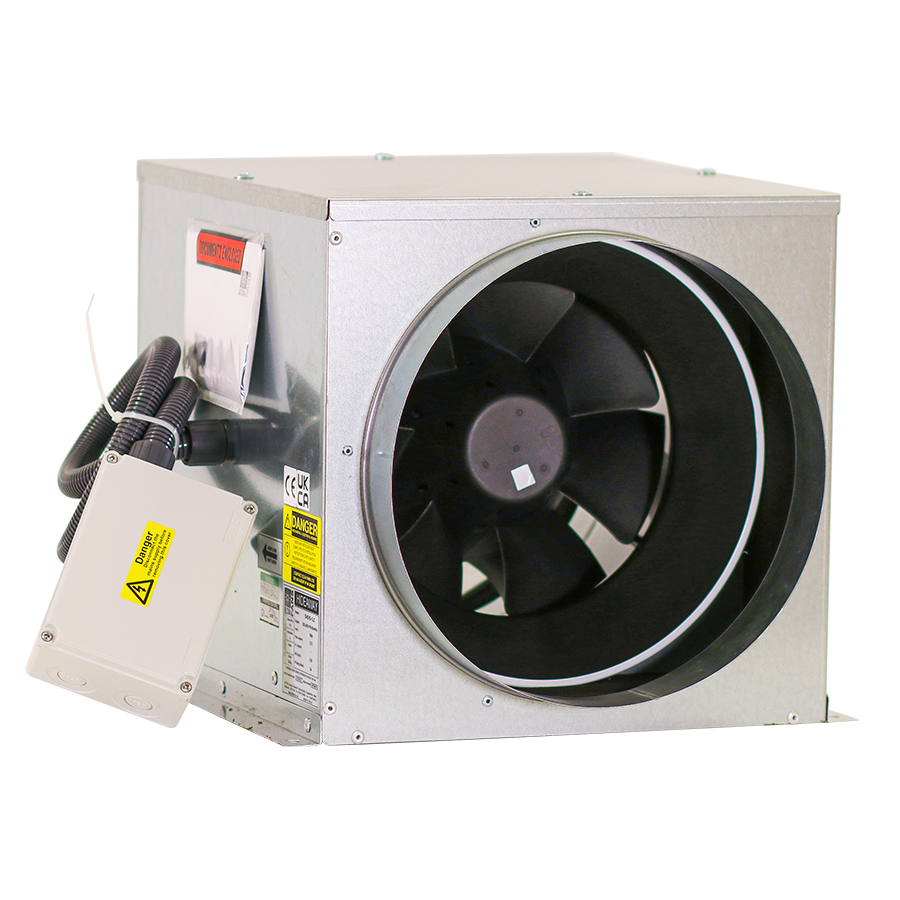

Hideaway SH100-1LC
Centrifugal Box Fan
- Standard size 100mm
- Air volume flow rates up to 0.832 m3/s
- Static pressures up to 451 Pa
- Suitable for operating temperatures up to +60℃
- Redesigned casing to improve airflow and reduce specific fan powers
- Acoustically lined internally to reduce breakout noise levels
- Low Specific Fan Power
- Available in EC
SKU: SH100-1LC
16 in stock
Got a question about this product?
Compatible Accessories
Overview
The Hideaway SH low profile box fan is perfect for applications where space is a premium. The Hideaway incorporates a high efficiency jet design double mixed flow impeller.
- Product Overview
- Installation and Maintenance
Downloads
Features and Benefits
Low Noise
Each unit is acoustically lined internally with Class O rated (BS 476 Parts 6 and 7) fire resistant acoustic foam lining minimising breakout noise levels.
Easy Commissioning
Integrated commissioning control allowing single speed selection and also limiting maximum speed if used with an external potentiometer.
Space saving
Ideal for very shallow ceiling voids or where space is at a premium.
Efficient Performance
Low power consumption at high performance resulting in Low Specific Fan Powers for Building Regulation Compliance.
Controllability
EC motors providing precise speed control via potentiometer, 0-10VDC or PWM Circuit. A potentiometer controller is available for manual control. Reduced fan speed can provide significant cost-savings through lower energy consumption in both mechanical energy of motors and also on the conditioning of replacement air.
Warranty
Each SH has a 12 month warranty.
Specification
Construction
A robust 1.2mm galvanised mild steel sheet casing. Each casing provides spigots to suit standard circular ducting. A removable lid is provided as standard to allow easy maintenance and cleaning.
Motor
A brushless EC motor is fitted as standard. The IPX4 motor contains sealed for life bearings. All motors are suitable for use in ambient air conditions up to +60°C.
Impeller
High efficiency jet design double mixed flow impeller, directly driven by the motor to provide a smooth airflow through the unit.
Typical Applications
