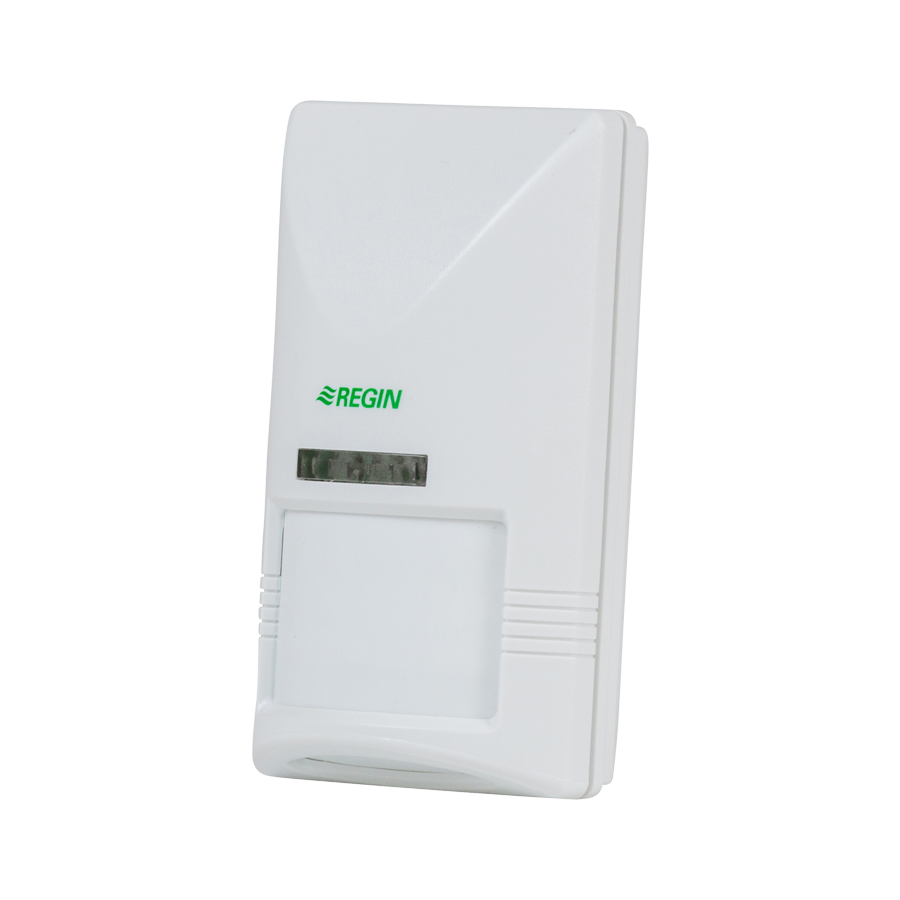

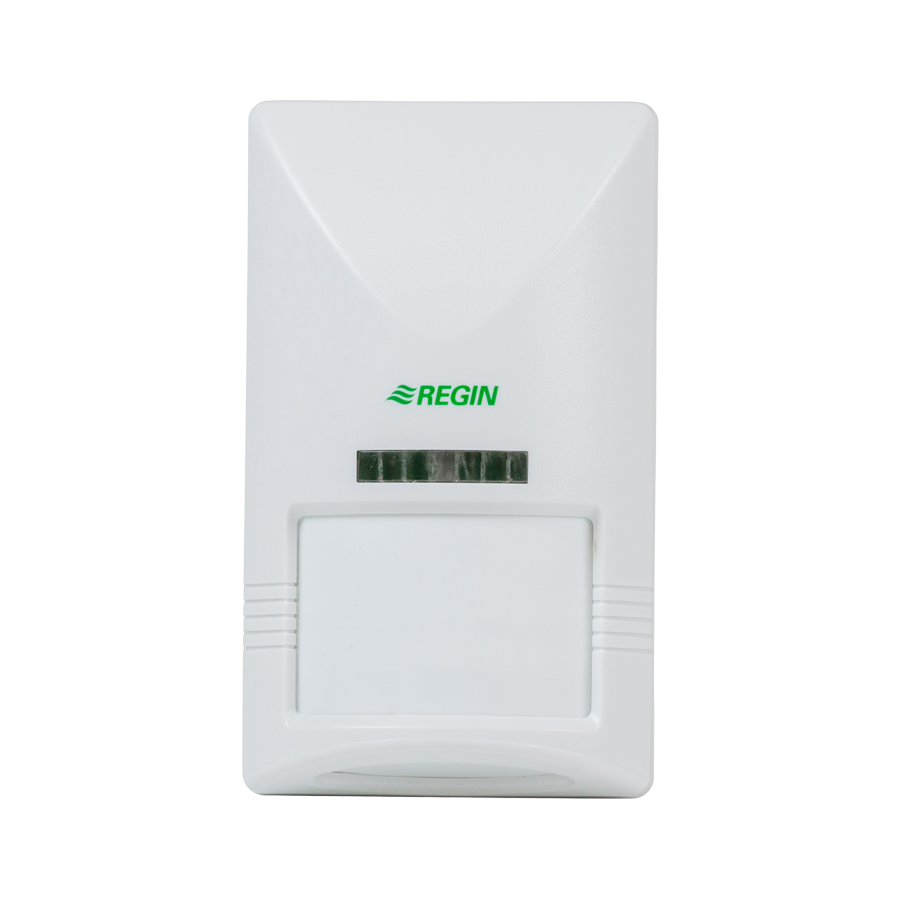

Presence Detector 149-DCV-PIR
- Power Supply 24V AC or DC
- Intended for wall or ceiling mounted
- Unobtrusive design
- Potential-free, changeover relay
- Both relay on-delay and/or relay off-delay, can be individually set
SKU: 149-DCV-PIR
24 in stock
Got a question about this product?
Compatible Accessories
Overview
149-DCV-PIR is a presence detector designed for Demand Control Ventilation systems.
- Product Overview
Downloads
Features and Benefits
Function
The PIR is a presence detector designed for automatic ventilation control of DCV systems. It saves money and gives higher comfort in premises which require forced ventilation for shorter periods of time, such as conference rooms, assembly-halls etc. The unit provides a changeover relay signal output for start/stop of fan or similar equipment. It can be wall or corner mounted with 110, 15m detection range.
Range Adjustments
In order to suit different rooms or areas, the detection range of PIR can be adjusted by changing the direction of the sensor. To change the sensor direction, release the screw on the mounting bracket and then carefully move the sensor to the direction desired.
On / Off Delay
The ON and OFF delays are designed to provide smarter energy management of DCV systems. ON delay is the time given to the sensor to certify the occupancy, before it activates the output relay. OFF delay is the time that the relay is activated after the last detection. Both ON and OFF delays can be easily set by placing the jumper head on the corresponding pins as following.
