Overview

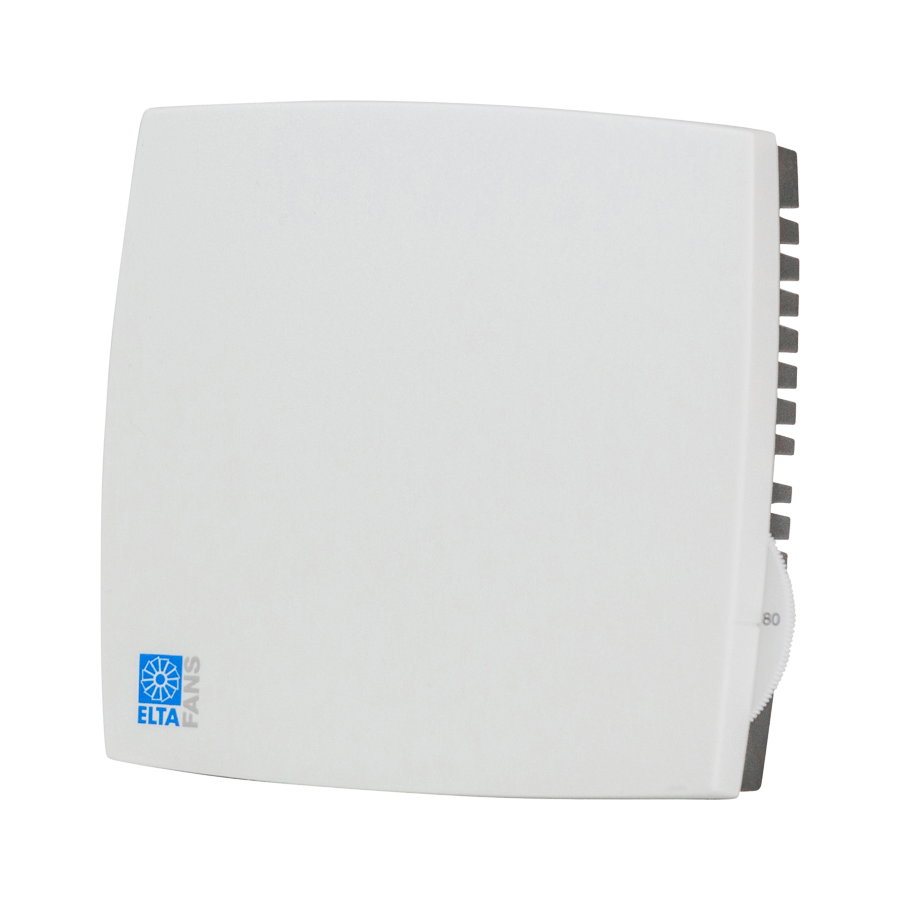

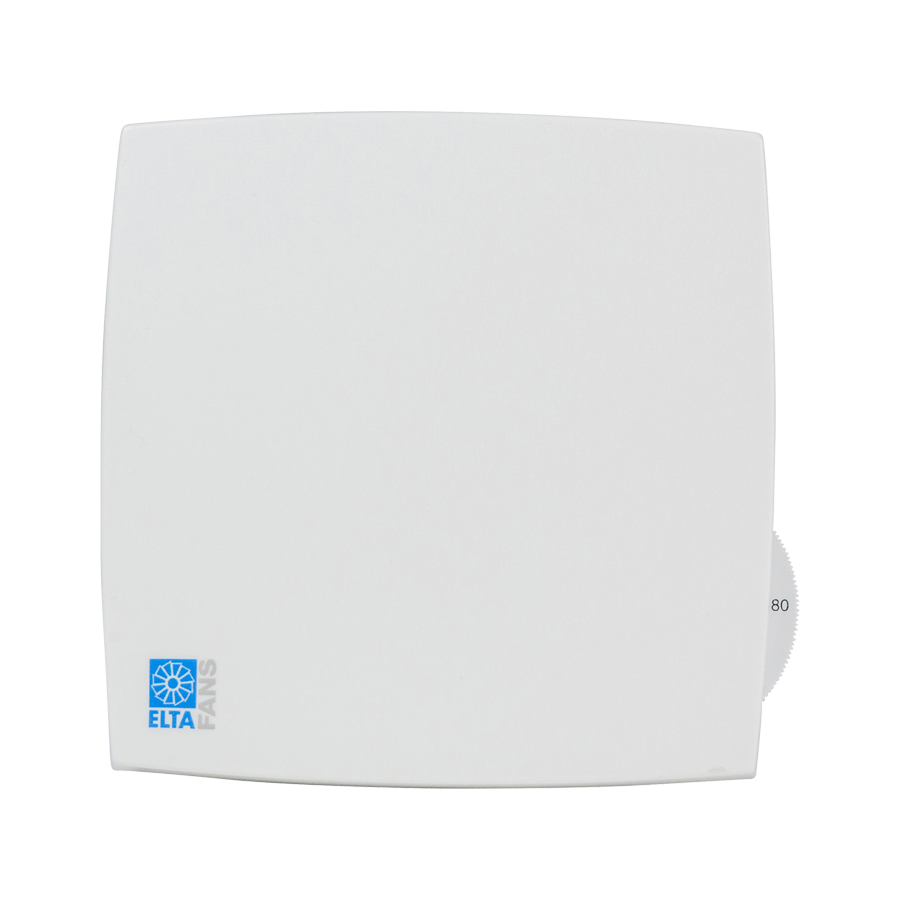

149-DCV-H1 is an electro-mechanichal room humidistat for controlling humidification and/or dehumidification in HVAC systems.
- Product Overview
Downloads
Features and Benefits
Function
The humidistat uses a synthetic element as sensor medium. The synthetic element stretches as the humidity increases and shrinks as the humidity decreases. These changes are transmitted to a microswitch. The setpoint knob affects the position of the microswitch in relation to the synthetic element. The setpoint can be set at between 35…95% RH.
Synthetic Element
We have developed a new synthetic element that gives a high accuracy at a low cost. In order to eliminate the risk of tampering, the setpoint knob can be locked In order to eliminate the risk of tampering, the setpoint knob can be locked by means of a locking screw under the cover.
Typical applications
Can be used to control a humidifier or a dehumidifier or for on/off controlling of a fan. Can also be used to alarm when the humidity exceeds or falls below a pre-set level.
