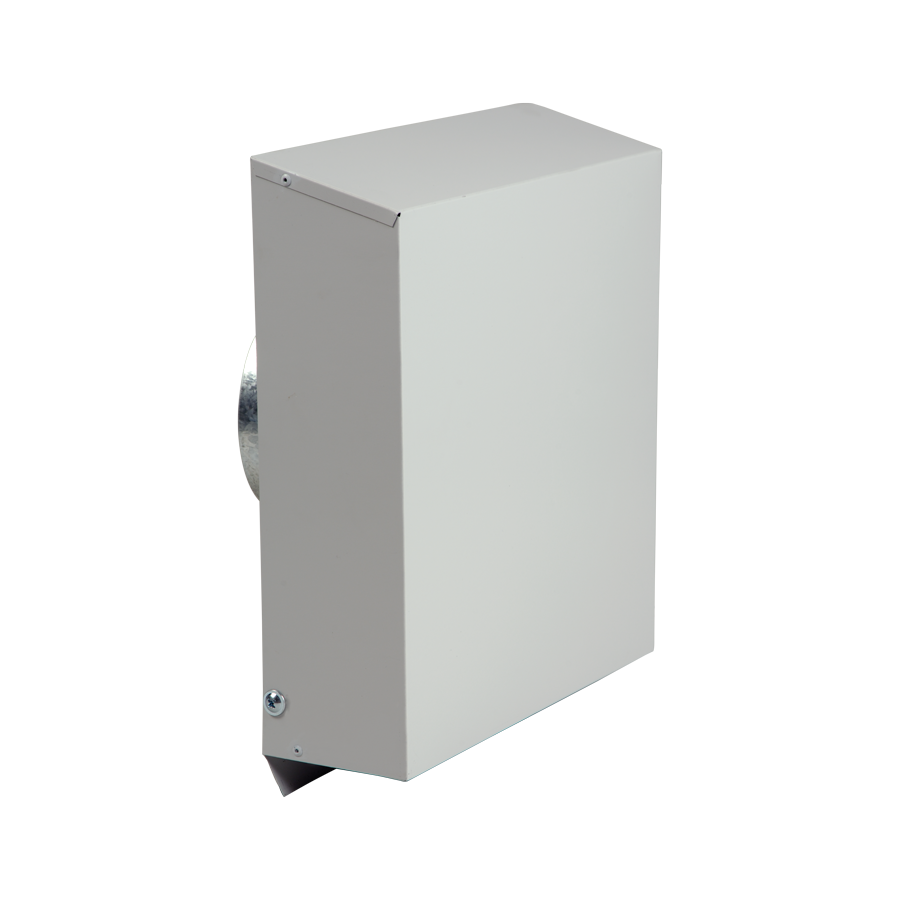

Ezifit Thru Wall SEWE154
Wall Mounted Centrifugal Fan
- Air volume flow rates of up to 1.24m3/sec
- Static pressures of up to 275 Pa
- Easy to install on exterior wall
- Suitable for operating temperatures up to 50℃
- Insect proof cover
- Easy access for cleaning
- Available in AC
SKU: SEWE154
Out of stock
Got a question about this product?
Compatible Accessories
Overview
The Ezifit Thru-Wall unit is a surface mounted fan which is specifically developed in response to the need for a fan that does not take up internal space and is suited to ducted systems where space is restricted such as between floors in residential applications.
- Product Overview
- Installation and Maintenance
Downloads
Features and Benefits
Easy to install on exterior wall.
Stylish, compact design for installation in tight spaces.
Lightweight, durable construction.
Powerful air extract.
Suitable for applications requiring long lengths of duct.
Suitable for operating temperatures up to 50℃.
Insect proof cover.
Easy access for cleaning.
Can be used with variable speed controller.
Thermal overload motor protection.
Specification
Casing
The all metal fan casing with colour bond finish provides a long lasting and robust construction. The casing outlet shall be fitted with fly screen.
Impeller
Aerodynamically designed backward curved centrifugal impellers constructed in aluminium or galvanised sheet steel. Impellers are balanced to ISO 14694 Grade G6.3.
Motors
Motors shall be external rotor motor, with sealed for life ball bearings. Motors shall be minimum IP44 protected and minimum Class B insulation. All units are suitable for operating temperatures up to +50℃.
Quality Management
Units are to be designed and manufactured with procedures as defined in BS EN ISO 9001:2008.
All SEWE units are to be tested to ISO 5801:2007 (airside performance) and BS 848 Part 2:1985 (sound performance).
